TECHNICAL DATA
Compressed air connection: male quick release adapter, for Rectus coupling, type 26, NW 7,2 mm
Grease connection: coupler, for hydraulic grease nipples, DIN 71412
Application: 25-kg-BE - Ø 310-335 mm - 6 m
Grease emptying: 99 % grease emptying - 1 % residual grease in the container
SPECIFICATION

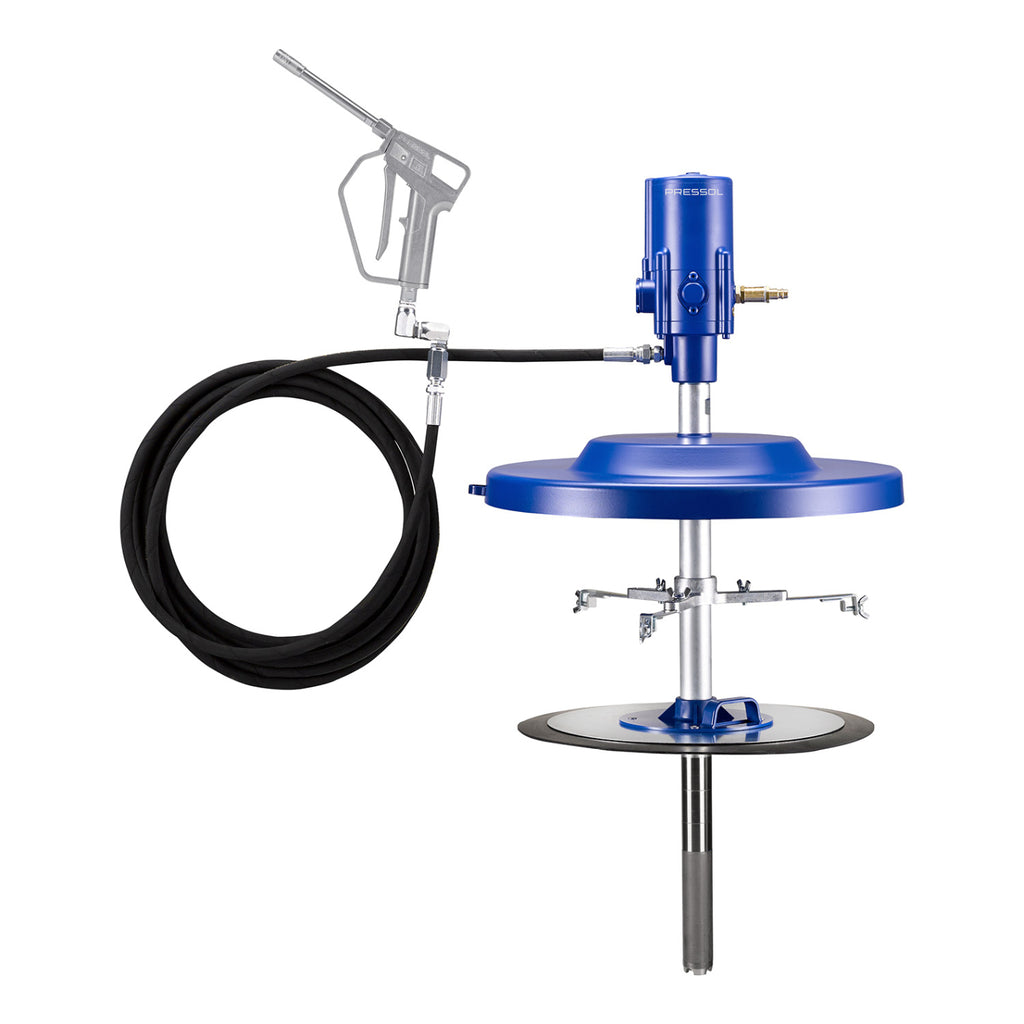

• Pneumatic grease pump 50:1 (18 711 051)
• Dust cover (17 194)
• Stabilizing-fixing bracket (17 199)
• Follower plate (17 320)
• High pressure grease gun (18 104)
• Z-swivel joint (18 082)
• High pressure hose, 6 m (18 026)
• Male quick release adapter (20 062)
• Pressure reducing valve (pre-set at 8 bar)
SPECIAL NOTES
• 99 % grease emptying - 1 % residual grease in the container
• Spare parts available for 10 years
• 5-year warranty on pneumatic pump (excluding wearable parts)
• Operate pneumatic pump with maintenance unit (oiler and water separator) (20 218 950)
PACKAGING
Dimensions LxWxH (mm): 1010 x 480 x 105
Weight (kg): 10,800
Packing unit: 1,0
